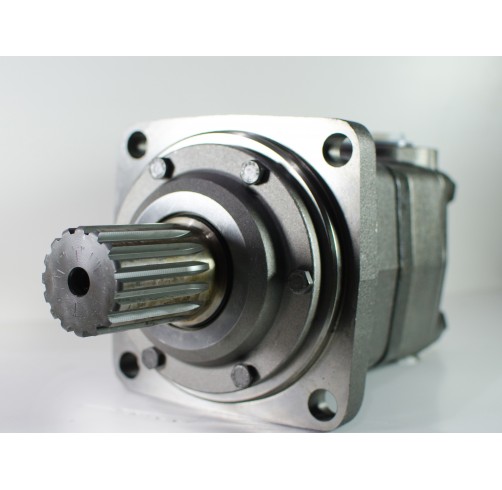

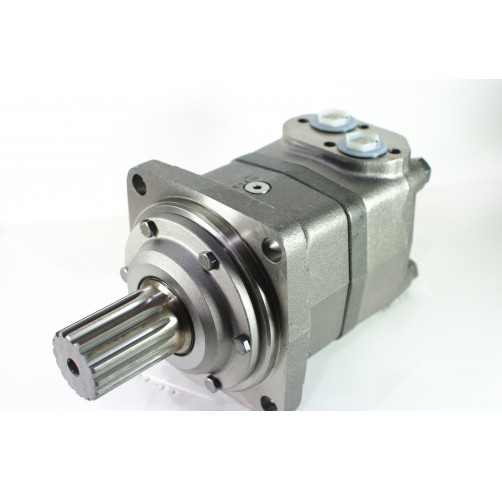

Motor thủy lực OMV500 – C/N: 151B3107

Giá bán: 1

OMV 500 Low Speed High Torque motor, Geometric Displacement 499.6 cm³

  • Type:                                                   OMV 500
  • Mã sản phẩm:                                    151B3107
  • Geometric Displacement:                 499.6 cm³
  • Thương hiệu:                                     Danfoss

Motor thủy lực OMV500 – C/N: 151B3107

Specifications

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended
Splined 16T output shaft 2.125″ with G1 BSP port
Splined Shaft ANS B92.1 – 1970 standard

Data sheet Motor thủy lực OMV500 – C/N: 151B3107

Unit weight 33.5 kg
Packing size 44 x 24 x 22 cm
Maximum Continuous Output Speed 400 rpm
Maximum Intermittent Output Speed 480 rpm
Maximum Continuous Output Torque 1460Nm
Maximum Intermittent Output Torque 1760Nm
