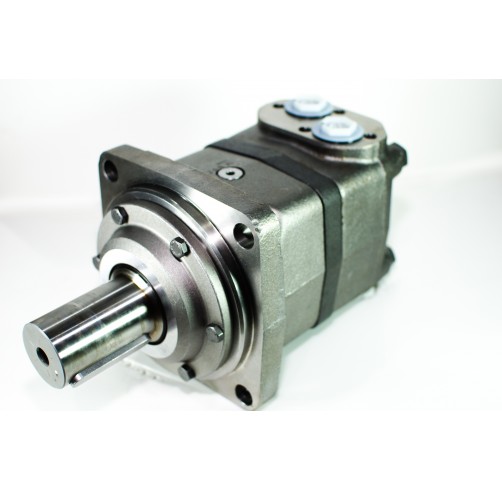

Motor thủy lực OMV315 – C/N: 151B3100

Giá bán: 1

OMV 315 Low Speed High Torque motor, Geometric Displacement 314.5 cm³

  • Type:                                                   OMV 315
  • Mã sản phẩm:                                    151B3100
  • Geometric Displacement:                 314.5 cm³
  • Thương hiệu:                                     Danfoss

Motor thủy lực OMV315 – C/N: 151B3100

Specifications

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended

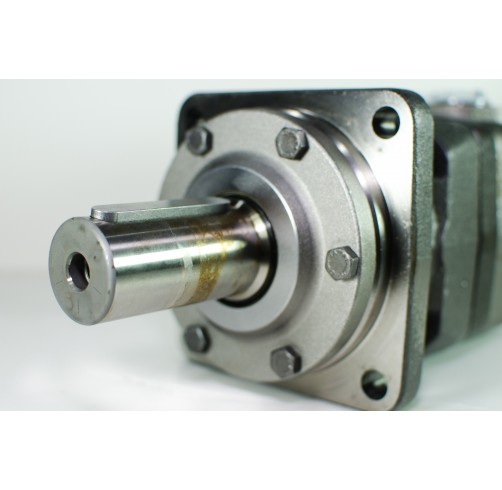

Cylindrical output shaft 50mm with G1 BSP port
Parallel key A14 x 9 x 70mm (DIN 6885) 682L8015

Data sheet Motor thủy lực OMV315 – C/N: 151B3100

Unit weight 31.8 kg
Packing size 44 x 24 x 22 cm
Maximum Continuous Output Speed 510 rpm
Maximum Intermittent Output Speed 630 rpm
Maximum Continuous Output Torque 920Nm
Maximum Intermittent Output Torque 1110Nm

CÔNG TY TNHH XNK PHÂN PHỐI THIẾT BỊ ĐIỆN TÂM PHÚC

Chuyên phân phối thiết bị Danfoss: Biến tần, Van, Cảm biến áp suất, Công tắc áp suất, Máy nén, Motor thủy lực…
  • Là đơn vị cung cấp Motor thủy lực OMV315 – C/N: 151B3100 chính hãng tại Việt Nam.
  • Cam kết hàng chính hãng Danfoss và được nhập khẩu chính ngạch.
  • Đầy đủ hóa đơn chứng từ.
  • Cam kết sản phẩm đảm bảo chất lượng do hãng Danfoss quy định.
