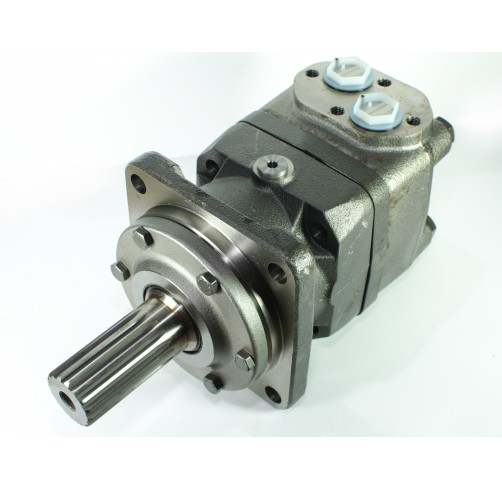

Motor thủy lực OMT160 – C/N: 151B3006

Giá bán: 1

OMT 160 Low Speed High Torque motor, Geometric Displacement 161.1 cm³

  • Type:                                                   OMT 160
  • Mã sản phẩm:                                    151B3006
  • Geometric Displacement:                 161.1 cm³
  • Thương hiệu:                                     Danfoss

Motor thủy lực OMT160 – C/N: 151B3006

Specifications

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended

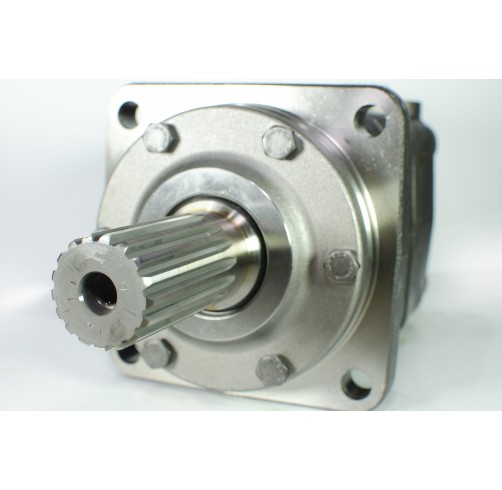

Splined 17T output shaft 1-1/2″ with 3/4 BSP port
Splined Shaft ANS B92.1 – 1970 standard

Data sheet Motor thủy lực OMT160 – C/N: 151B3006

Unit weight 20.0 kg
Packing size 44 x 24 x 17 cm
Maximum Continuous Output Speed 625 rpm
Maximum Intermittent Output Speed 780 rpm
Maximum Continuous Output Torque 470Nm
Maximum Intermittent Output Torque 560Nm

CÔNG TY TNHH XNK PHÂN PHỐI THIẾT BỊ ĐIỆN TÂM PHÚC

Chuyên phân phối thiết bị Danfoss: Biến tần, Van, Cảm biến áp suất, Công tắc áp suất, Máy nén, Motor thủy lực…
  • Là đơn vị cung cấp Motor thủy lực OMT160 – C/N: 151B3006 chính hãng tại Việt Nam.
  • Cam kết hàng chính hãng Danfoss và được nhập khẩu chính ngạch.
  • Đầy đủ hóa đơn chứng từ.
  • Cam kết sản phẩm đảm bảo chất lượng do hãng Danfoss quy định.
