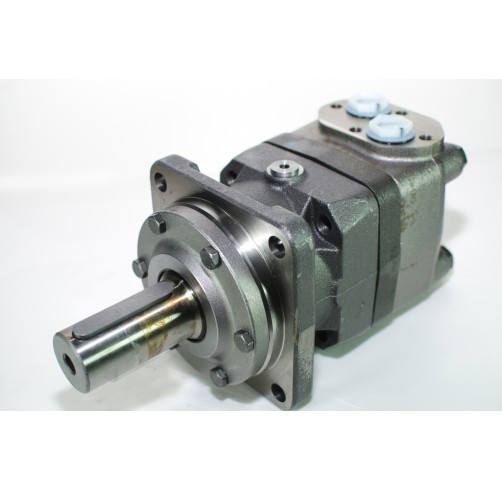

Motor thủy lực OMT500 – C/N: 151B3005

Giá bán: 1

OMT 500 Low Speed High Torque motor, Geometric Displacement 523.6 cm³

  • Type:                                                   OMT 500
  • Mã sản phẩm:                                    151B3005
  • Geometric Displacement:                 410.9 cm³
  • Thương hiệu:                                     Danfoss

Motor thủy lực OMT500 – C/N: 151B3005

Specifications

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended

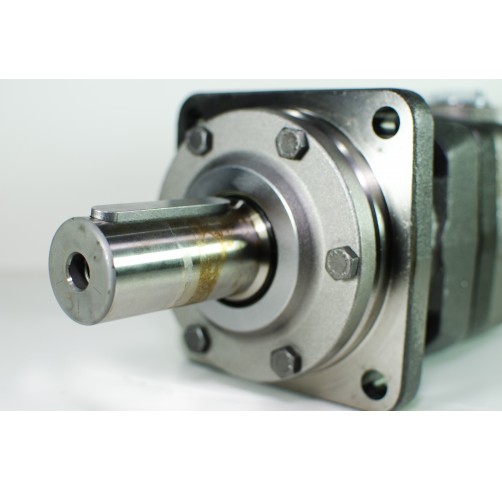

Cylindrical output shaft 40mm with 3/4 BSP port
Parallel key A12 x 8 x 70mm (DIN 6885) 682L8014

Data sheet Motor thủy lực OMT500 – C/N: 151B3005

Unit weight 24.0 kg
Packing size 44 x 24 x 17 cm
Maximum Continuous Output Speed 240 rpm
Maximum Intermittent Output Speed 285 rpm
Maximum Continuous Output Torque 1220Nm
Maximum Intermittent Output Torque 1370Nm

CÔNG TY TNHH XNK PHÂN PHỐI THIẾT BỊ ĐIỆN TÂM PHÚC

Chuyên phân phối thiết bị Danfoss: Biến tần, Van, Cảm biến áp suất, Công tắc áp suất, Máy nén, Motor thủy lực…
  • Là đơn vị cung cấp Motor thủy lực OMT500 – C/N: 151B3005 chính hãng tại Việt Nam.
  • Cam kết hàng chính hãng Danfoss và được nhập khẩu chính ngạch.
  • Đầy đủ hóa đơn chứng từ.
  • Cam kết sản phẩm đảm bảo chất lượng do hãng Danfoss quy định.

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên nhận xét “Motor thủy lực OMT500 – C/N: 151B3005”

Email của bạn sẽ không được hiển thị công khai. Các trường bắt buộc được đánh dấu *

OMT500 - 151B3005 - BẢN VẼ

Download(342 KB)

OMT500 - 151B3005 - LỰA CHỌN

Download(28 KB)

OMT500 - 151B3005 - KỸ THUẬT

Download(27 KB)
