Motor thủy lực OMT250 – C/N: 151B3008

Giá bán: 1

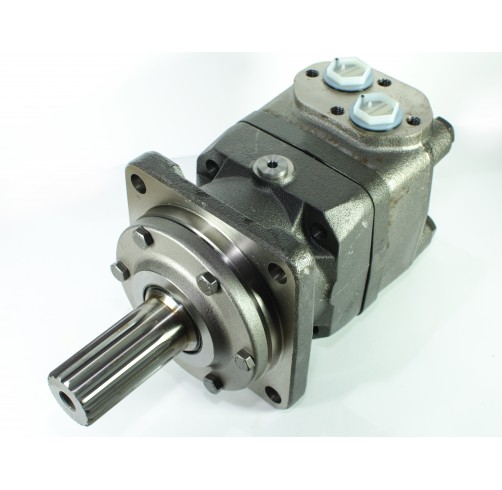

OMT 250 Low Speed High Torque motor, Geometric Displacement 251.8 cm³

  • Type:                                                   OMT 250
  • Mã sản phẩm:                                    151B3008
  • Geometric Displacement:                 251.8 cm³
  • Thương hiệu:                                     Danfoss

Motor thủy lực OMT250 – C/N: 151B3008

Specifications

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended

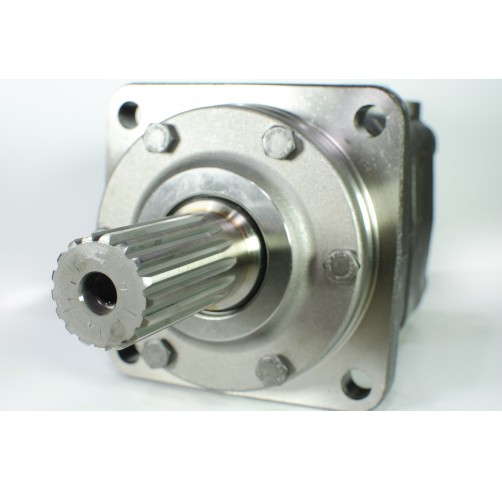

Splined 17T output shaft 1-1/2″ with 3/4 BSP port
Splined Shaft ANS B92.1 – 1970 standard

Data sheet Motor thủy lực OMT250 – C/N: 151B3008

Unit weight 21.0 kg
Packing size 44 x 24 x 17 cm
Maximum Continuous Output Speed 500 rpm
Maximum Intermittent Output Speed 600 rpm
Maximum Continuous Output Torque 730Nm
Maximum Intermittent Output Torque 880Nm

CÔNG TY TNHH XNK PHÂN PHỐI THIẾT BỊ ĐIỆN TÂM PHÚC

Chuyên phân phối thiết bị Danfoss: Biến tần, Van, Cảm biến áp suất, Công tắc áp suất, Máy nén, Motor thủy lực…
  • Là đơn vị cung cấp Motor thủy lực OMT250 – C/N: 151B3008 chính hãng tại Việt Nam.
  • Cam kết hàng chính hãng Danfoss và được nhập khẩu chính ngạch.
  • Đầy đủ hóa đơn chứng từ.
  • Cam kết sản phẩm đảm bảo chất lượng do hãng Danfoss quy định.

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên nhận xét “Motor thủy lực OMT250 – C/N: 151B3008”

Email của bạn sẽ không được hiển thị công khai. Các trường bắt buộc được đánh dấu *

OMT250 - 151B3008 - BẢN VẼ

Download(347 KB)

OMT250 - 151B3008 - LỰA CHỌN

Download(27 KB)

OMT250 - 151B3008 - KỸ THUẬT

Download(27 KB)
