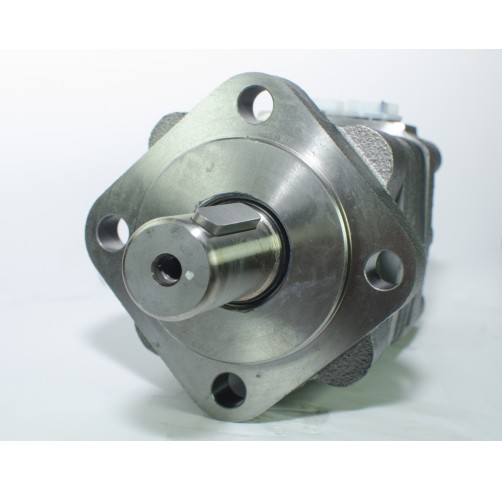

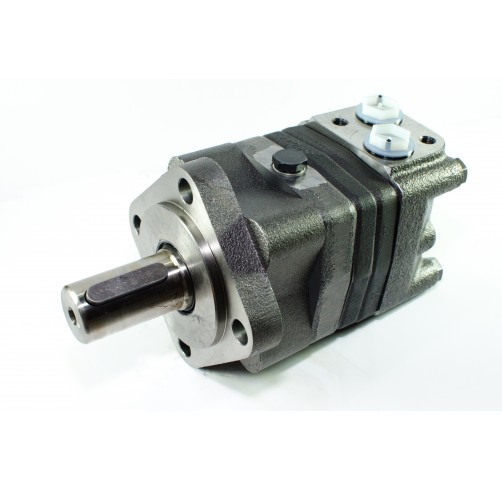

Motor thủy lực OMS315 – C/N: 151F0506

Giá bán: 1

OMS 315 Low Speed High Torque motor, Geometric Displacement 314.9 cm³

  • Type:                                                   OMS 315
  • Mã sản phẩm:                                    151F0506
  • Geometric Displacement:                 314.9 cm³
  • Thương hiệu:                                     Danfoss

Motor thủy lực OMS315 – C/N: 151F0506

Specifications

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended
Cylindrical output shaft 32mm with 1/2 BSP port
Parallel key A10 x 8 x 45mm (DIN 6885) 682L8019

Data sheet Motor thủy lực OMS315 – C/N: 151F0506

Unit weight 12.3 kg
Packing size 40 x 17 x 16 cm
Maximum Continuous Output Speed 240 rpm
Maximum Intermittent Output Speed 285 rpm
Maximum Continuous Output Torque 825Nm
Maximum Intermittent Output Torque 1000Nm

CÔNG TY TNHH XNK PHÂN PHỐI THIẾT BỊ ĐIỆN TÂM PHÚC

Chuyên phân phối thiết bị Danfoss: Biến tần, Van, Cảm biến áp suất, Công tắc áp suất, Máy nén, Motor thủy lực…
  • Là đơn vị cung cấp Motor thủy lực OMS315 – C/N: 151F0506 chính hãng tại Việt Nam.
  • Cam kết hàng chính hãng Danfoss và được nhập khẩu chính ngạch.
  • Đầy đủ hóa đơn chứng từ.
  • Cam kết sản phẩm đảm bảo chất lượng do hãng Danfoss quy định.
