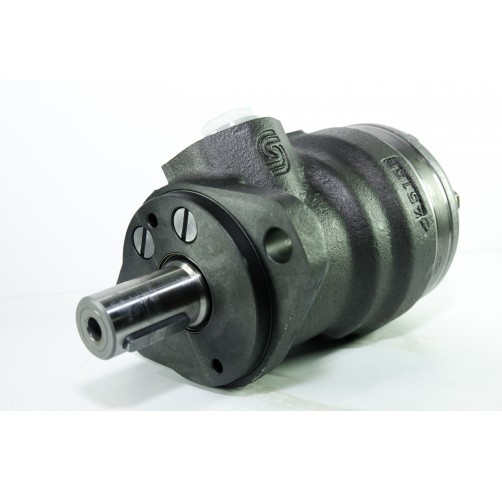

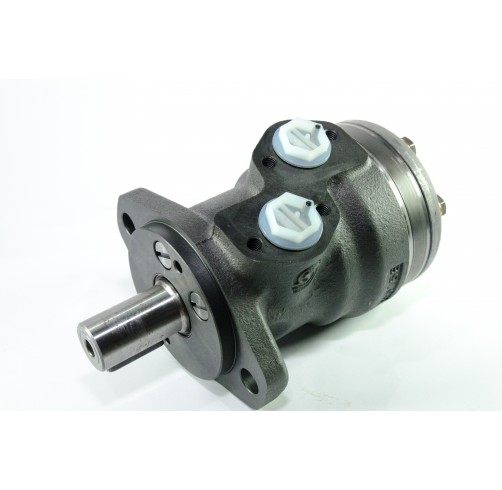

Motor thủy lực OMR50 – C/N: 151-0700

Giá bán: 1

OMR 50 Low Speed High Torque motor, Geometric Displacement 51.6 cm³

  • Type:                                                   OMR 50
  • Mã sản phẩm:                                    151-0700
  • Geometric Displacement:                 51.6 cm³
  • Thương hiệu:                                     Danfoss
  • Xuất xứ:                                              Danfoss Poland

Motor thủy lực OMR50 – C/N: 151-0700

Specifications

The rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures. Gearwheel sets with rollers are recommended for operation with thin oil and for applications having continually reversing loads. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc
Cylindrical output shaft 1″ with 1/2 BSP side ports
Parallel key 1/4″ x 1/4″ x 1-1/4″ B.S. 46 682L8036

Data sheet Motor thủy lực OMR50 – C/N: 151-0700

Unit weight 6.7 kg
Packing size 29 x 14 x 11 cm
Maximum Continuous Output Speed 775 rpm
Maximum Intermittent Output Speed 970 rpm
Maximum Continuous Output Torque 100Nm
Maximum Intermittent Output Torque 130Nm

CÔNG TY TNHH XNK PHÂN PHỐI THIẾT BỊ ĐIỆN TÂM PHÚC

Chuyên phân phối thiết bị Danfoss: Biến tần, Van, Cảm biến áp suất, Công tắc áp suất, Máy nén, Motor thủy lực…
  • Là đơn vị cung cấp Motor thủy lực OMR50 – C/N: 151-0700 chính hãng tại Việt Nam.
  • Cam kết hàng chính hãng Danfoss và được nhập khẩu chính ngạch.
  • Đầy đủ hóa đơn chứng từ.
  • Cam kết sản phẩm đảm bảo chất lượng do hãng Danfoss quy định.

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên nhận xét “Motor thủy lực OMR50 – C/N: 151-0700”

Email của bạn sẽ không được hiển thị công khai. Các trường bắt buộc được đánh dấu *

OMR50 - 151-0700 - BẢN VẼ

Download(330 KB)

OMR50 - 151-0700 - LỰA CHỌN

Download(28 KB)

OMR50 - 151-0700 - KỸ THUẬT

Download(27 KB)
