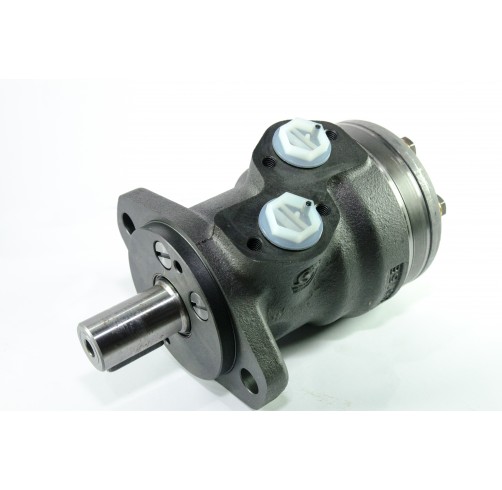

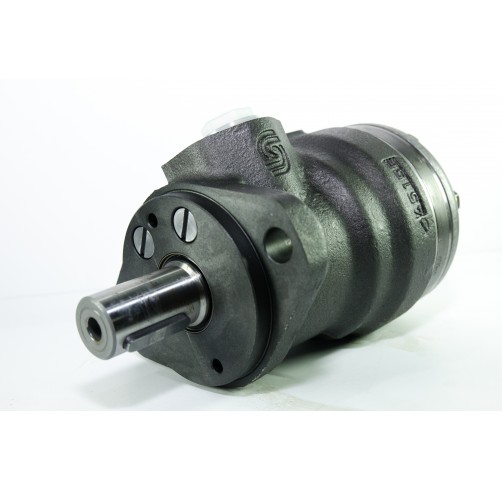

Motor thủy lực OMR X 315 – C/N: 11186652

Giá bán: 1

OMR X 315 Low Speed High Torque motor, Geometric Displacement 315.7 cm³

  • Type:                                                   OMR X 315
  • Mã sản phẩm:                                    11186652
  • Geometric Displacement:                 315.7 cm³
  • Thương hiệu:                                     Danfoss
  • Xuất xứ:                                              Danfoss Poland

Motor thủy lực OMR X 315 – C/N: 11186652

Specifications

The rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures. Gearwheel sets with rollers are recommended for operation with thin oil and for applications having continually reversing loads. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc
Cylindrical output shaft 25mm with 1/2 BSP side ports
Parallel key A8 x 7 x 32 DIN 6885 682L8035

Data sheet Motor thủy lực OMR X 315 – C/N: 11186652

Unit weight 9.0 kg
Packing size 29 x 14 x 11 cm
Maximum Continuous Output Speed 195 rpm
Maximum Intermittent Output Speed 245 rpm
Maximum Continuous Output Torque 340Nm
Maximum Intermittent Output Torque 450Nm

CÔNG TY TNHH XNK PHÂN PHỐI THIẾT BỊ ĐIỆN TÂM PHÚC

Chuyên phân phối thiết bị Danfoss: Biến tần, Van, Cảm biến áp suất, Công tắc áp suất, Máy nén, Motor thủy lực…
  • Là đơn vị cung cấp Motor thủy lực OMR X 315 – C/N: 11186652 chính hãng tại Việt Nam.
  • Cam kết hàng chính hãng Danfoss và được nhập khẩu chính ngạch.
  • Đầy đủ hóa đơn chứng từ.
  • Cam kết sản phẩm đảm bảo chất lượng do hãng Danfoss quy định.

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên nhận xét “Motor thủy lực OMR X 315 – C/N: 11186652”

Email của bạn sẽ không được hiển thị công khai. Các trường bắt buộc được đánh dấu *

OMR x 315 - 11186652 (BẢN VỄ)

Download(67 KB)

OMR x 315 - 11186652 (CHI TIẾT CHUYỂN ĐỔI)

Download(18 KB)

OMR x 315 - 11186652 (SO SÁNH KỸ THUẬT)

Download(9 KB)
