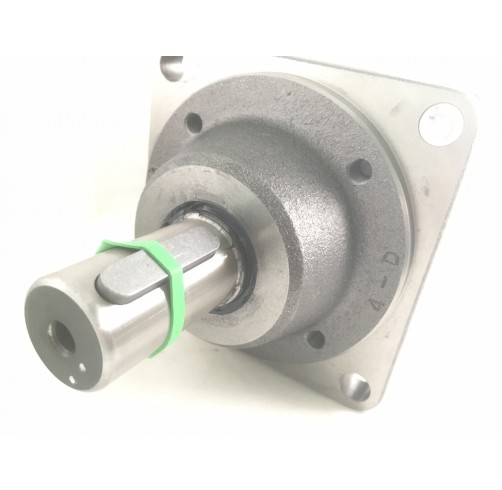

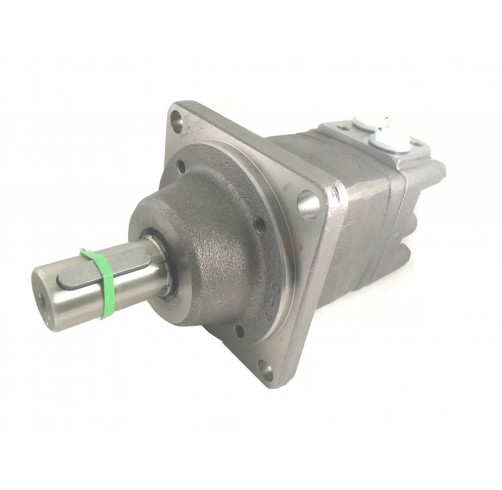

Motor thủy lực OMSW400 – C/N: 151F0610

Giá bán: 1

OMSW 400 Low Speed High Torque Wheel motor, Geometric Displacement 393.0 cm³

  • Type:                                                   OMSW 400
  • Mã sản phẩm:                                    151F0610
  • Geometric Displacement:                 393.0 cm³
  • Thương hiệu:                                     Danfoss

Motor thủy lực OMSW400 – C/N: 151F0610

Specifications

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics.

The recessed mounting flange of a wheel motor makes it possible to fit into a wheel hub or winch drum so that the radial load acts midway between the two motor bearings. This gives the best utilisation of the bearing capacity and is a very compact solution..

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended

Cylindrical output shaft 32mm with 1/2 BSP port
Parallel key A10 x 8 x 45mm (DIN 6885)

Data sheet Motor thủy lực OMSW400 – C/N: 151F0610

Unit weight 13.6 kg
Packing size 40 x 17 x 16 cm
Maximum Continuous Output Speed 190 rpm
Maximum Intermittent Output Speed 230 rpm
Maximum Continuous Output Torque 865Nm
Maximum Intermittent Output Torque 990Nm

CÔNG TY TNHH XNK PHÂN PHỐI THIẾT BỊ ĐIỆN TÂM PHÚC

Chuyên phân phối thiết bị Danfoss: Biến tần, Van, Cảm biến áp suất, Công tắc áp suất, Máy nén, Motor thủy lực…
  • Là đơn vị cung cấp Motor thủy lực OMSW400 – C/N: 151F0610 chính hãng tại Việt Nam.
  • Cam kết hàng chính hãng Danfoss và được nhập khẩu chính ngạch.
  • Đầy đủ hóa đơn chứng từ.
  • Cam kết sản phẩm đảm bảo chất lượng do hãng Danfoss quy định.

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên nhận xét “Motor thủy lực OMSW400 – C/N: 151F0610”

Email của bạn sẽ không được hiển thị công khai. Các trường bắt buộc được đánh dấu *

OMSW400 - 151F0610 - BẢN VẼ

Download(310 KB)

OMSW400 - 151F0610 - LỰA CHỌN

Download(30 KB)

OMSW400 - 151F0610 - KỸ THUẬT

Download(29 KB)
