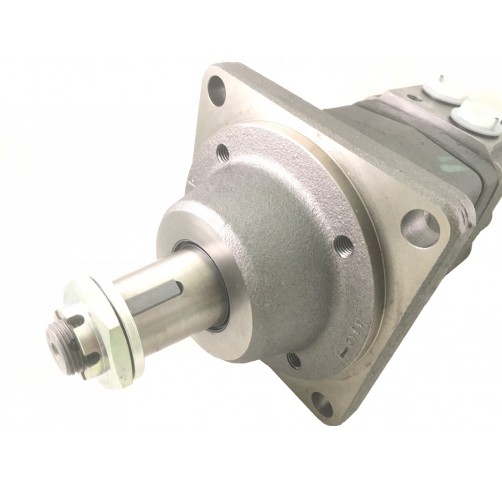

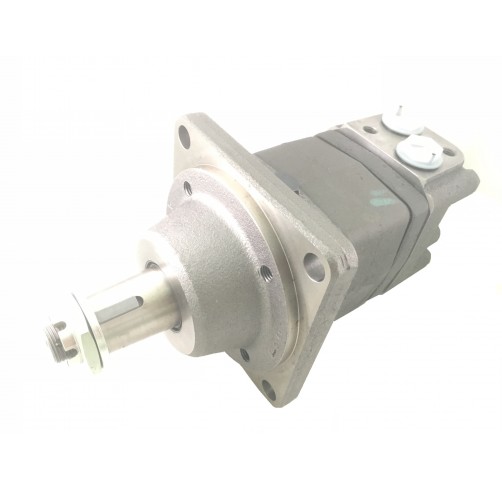

Motor thủy lực OMSW200 – C/N: 151F0532
OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bearings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics.
The recessed mounting flange of a wheel motor makes it possible to fit into a wheel hub or winch drum so that the radial load acts midway between the two motor bearings. This gives the best utilisation of the bearing capacity and is a very compact solution..
If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended
Tapered output shaft 35mm with 1/2 BSP port
Parallel key B6 x 6 x 20mm (DIN 6885) 682L8021
