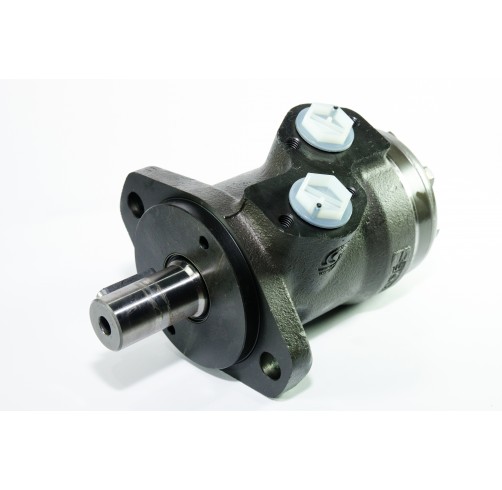

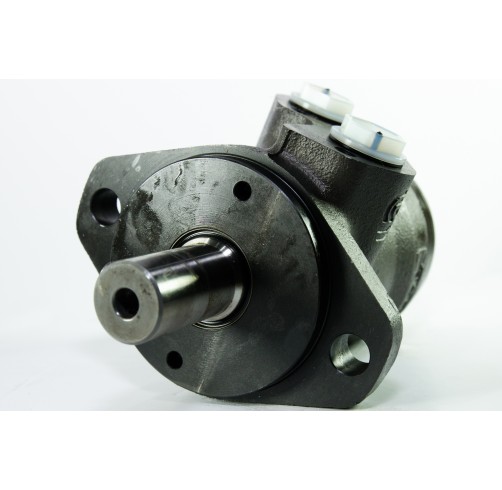

Motor thủy lực OMP X 50 – C/N: 11185771

Giá bán: 1

OMP X 50 Low Speed High Torque motor, Geometric Displacement 48.6 cm³

  • Type:                                                   OMP X 50
  • Mã sản phẩm:                                    11185771
  • Geometric Displacement:                 48.6 cm³
  • Thương hiệu:                                     Danfoss
  • Xuất xứ:                                              Danfoss Poland

Motor thủy lực OMP X 50 – C/N: 11185771

Specifications

The rollerless gear rim design is suitable for long operating periods at moderate pressures, or short operating periods at high pressures. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc

Cylindrical output shaft 25mm with 1/2 BSP side ports
Parallel key A8 x 7 x 32 DIN 6885 682L8035

Data sheet Motor thủy lực OMP X 50 – C/N: 11185771

Unit weight 6.4 kg
Packing size 29 x 14 x 11 cm
Maximum Continuous Output Speed 1230 rpm
Maximum Intermittent Output Speed 1550 rpm
Maximum Continuous Output Torque 120Nm
Maximum Intermittent Output Torque 140Nm

CÔNG TY TNHH XNK PHÂN PHỐI THIẾT BỊ ĐIỆN TÂM PHÚC

Chuyên phân phối thiết bị Danfoss: Biến tần, Van, Cảm biến áp suất, Công tắc áp suất, Máy nén, Motor thủy lực…
  • Là đơn vị cung cấp Motor thủy lực OMP X 50 – C/N: 11185771 chính hãng tại Việt Nam.
  • Cam kết hàng chính hãng Danfoss và được nhập khẩu chính ngạch.
  • Đầy đủ hóa đơn chứng từ.
  • Cam kết sản phẩm đảm bảo chất lượng do hãng Danfoss quy định.

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên nhận xét “Motor thủy lực OMP X 50 – C/N: 11185771”

Email của bạn sẽ không được hiển thị công khai. Các trường bắt buộc được đánh dấu *

OMP X 50 - 11185771 (DRAWING)

Download(67 KB)

OMP X 50 - 11185771 (CONVERSION DETAIL)

Download(31 KB)

OMP X 50 - 11185771 (TECHNICAL COMPARISON)

Download(20 KB)
