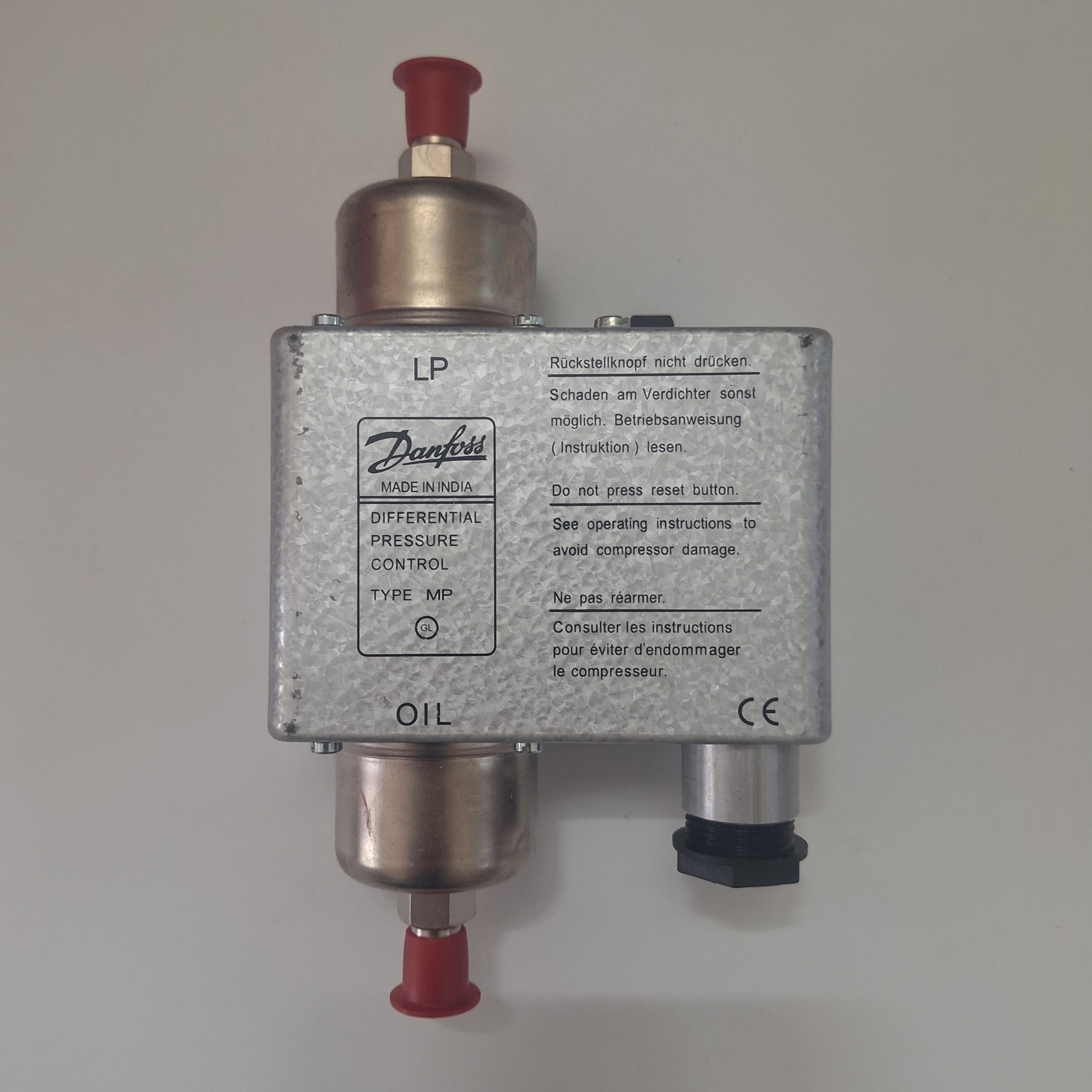

Công tắc áp suất Danfoss MP55 – C/N: 060B017291

1 Giá sau thuế VAT: 1

Công tắc áp suất Danfoss MP55, -1-12 bar, Diff 0.3-4.5 bar, Flare 1/4, Manual Min 90”

  • Type:                                            MP55
  • Mã sản phẩm:                             060B017291
  • Áp suất:                                      -1 – 12 bar
  • Differential:                                 0.3 – 4.5 bar
  • Reset function:                           Manual Min
  • Relay release time:                    90 s
  • Pressure connection type:        Flare
  • Pressure connection size:        1/4 in
  • Thương hiệu:                             Danfoss
  • Xuất xứ:                                      Danfoss India

Thời gian bảo hành: 12 tháng.

Thuế VAT: Mức thuế VAT sẽ được xác định theo luật quy định của Nhà nước tại thời điểm Tâm Phúc phát hành hóa đơn VAT.

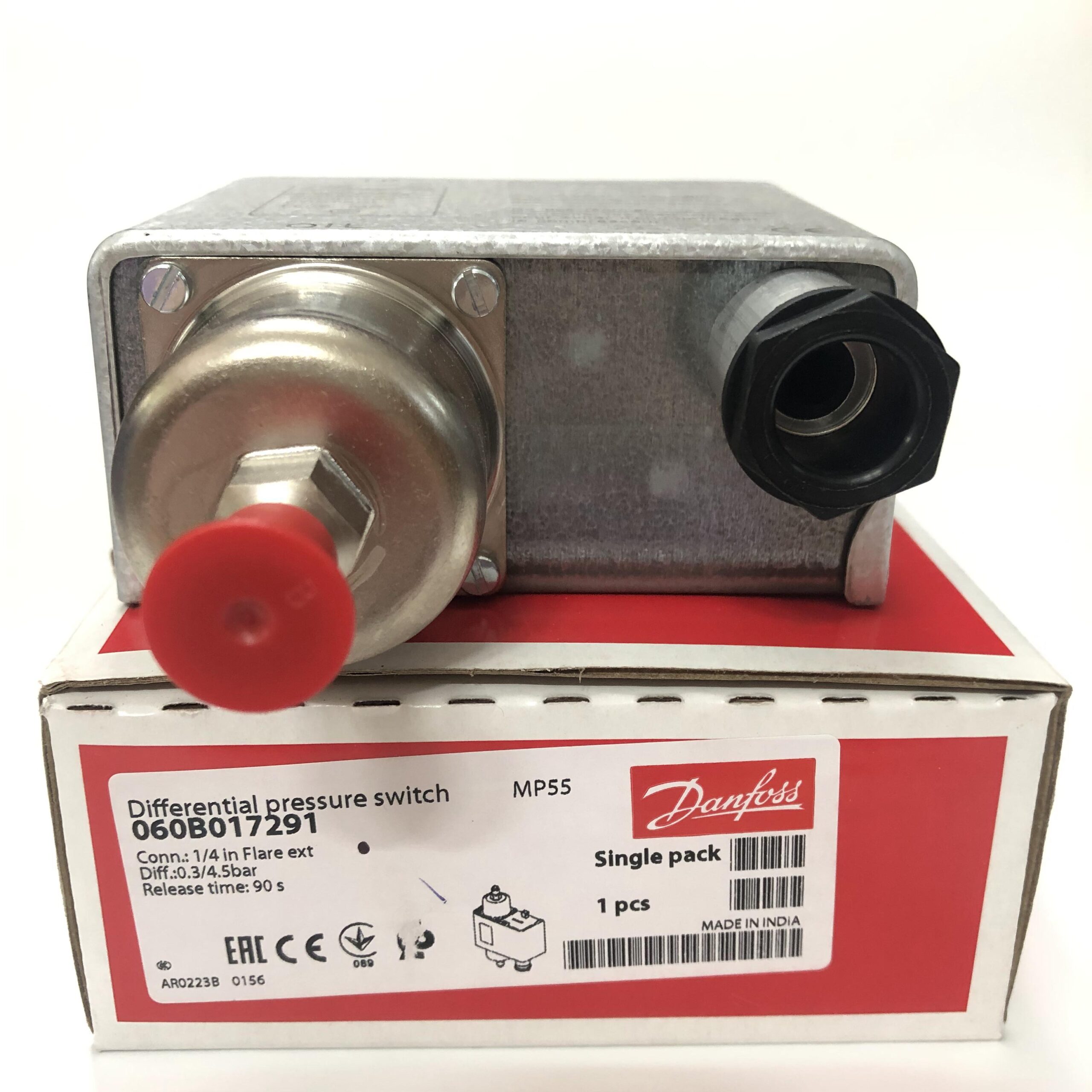

Differential pressure switch, MP55

060B017291

  • Diff.press.setting range [bar]: 0.30 – 4.50
  • Reset function: Manual Min
  • Pressure connection type: Flare
  • Pressure connection size: 1/4 in
  • Enclosure rating IP: IP20
  • Max. Working Pressure [bar]: 17.0

Thông số kỹ thuật Công tắc áp suất Danfoss MP55 – 060B017291

Gross weight 0.784 Kilogram
Net weight 0.688 Kilogram
Volume 1.901 Liter
EAN 5702424499761
Adjustment Cut out for falling pressure
Amb. Temp. Note Bellows max 100 °C/212 °F
Ambient temperature range [°C] [max] 60 °C
Ambient temperature range [°C] [min] -40 °C
Ambient temperature range [°F] [max] 140 °F
Ambient temperature range [°F] [min] -40 °F
Approval CCC
CE
CMIM
DNV∙GL
EAC
LLC CDC EURO-TYSK
LVD
RINA
RoHS China
TYSK
CE evaluated Yes
China RoHS compliance Yes
Contact differential [bar] 0.2 bar
Contact function SPDT
Contact rating AC15=2 A, 250 V
DC13=0.2 A, 250 V
Diff.press.setting range [bar] [max] 4.5 bar
Diff.press.setting range [bar] [min] 0.3 bar
Diff.press.setting range [MPa] [max] 0.45 MPa
Diff.press.setting range [MPa] [min] 0.03 MPa
Diff.press.setting range [psi] [max] 65 psi
Diff.press.setting range [psi] [min] 4.3 psi
Electrical conn. Male/Female Female
Electrical connection Screwed cable entry
Electrical connection size Pg 13.5
Electrical connection standard DIN 40430
Electrical spec. standard EN 60947-5
EN 60947 electrical properties Insulation: 250V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 2A
EN 60947 wiring properties Flex, ferrules: 0.2-1.0 mm2
Flex, no ferrules: 0.2-1.5 mm2
Solid/stranded: 0.2-1.5 mm2
Enclosure rating IP IP20
Equipment Thermal time relay
EU RoHS compliance Out of scope
Factory setting [bar] 0.65 bar
Factory setting [psig] 9 psig
Identical product 060B101266
In scope of WEEE and contain batteries No
Max. test pressure [bar] Pe 22 bar
Max. test pressure [psig] 319 psig
Max. Working Pressure [bar] 17 bar
Max. Working Pressure [psig] 245 psig
Operat. range LP side [bar] Pe [max] 12 bar
Operat. range LP side [bar] Pe [min] -1 bar
Operat. range LP side [psig]Pe [max] 175 psig
Operat. range LP side [psig]Pe [min] -15 psig
Other RoHS documentation Saudi Arabia RoHS
Packing format Multi pack
Pressure connection size 1/4 in
Pressure connection standard DIN 8906
Pressure connection type Flare
Pressure Male/Female Male
Product accessories Generic accessories
Product description Diff. Pressure Switch
Product group Switches and thermostats
Product Name Description Differential pressure switch
Quantity per packing format 21 pc
Refrigerants R11; R113;
R12; R124;
R134a; R22;
R404A; R407A;
R407C; R407F;
R407H; R422B;
R422D; R438A;
R448A; R449A;
R449B; R450A;
R452A; R507C;
R513A; R515B
Relay release time [s] 90 s
Reset function Manual Min
Serviceable No
Type MP55
UK RoHS compliance Out of scope
UL approved refrigerants R11; R113;
R12; R124;
R134a; R22;
R404A; R407A;
R407C; R407F;
R407H; R422B;
R422D; R438A;
R448A; R449A;
R449B; R450A;
R452A; R507C;
R513A; R515B
