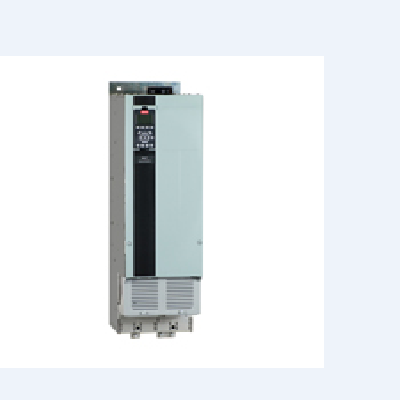

Biến tần Danfoss VLT Refrigeration Drive FC 103N132

Biến tần Danfoss VLT® RefrigerationDrive FC103-55Kw – C/N: 134F8191

Biến tần Danfoss VLT Refrigeration Drive FC-103P55KT4E20H2XGXXXXSXXXXAXBXCXXXXDX – 55 KW / 75 HP, Three phase 380 – 480 VAC, IP20 / Chassis, RFI filter Class A2, Graphical LCP

Type code: FC-103P55KT4E20H2XGXXXXSXXXXAXBXCXXXXDX
Mã sản phẩm: 134F8191
Công suất: 55 KW / 75 HP
Điện áp: 380-480V
Thương hiệu: Danfoss
Xuất xứ: Danfoss Denmark

Mã: 134F8191 Danh mục: Biến Tần Danfoss VLT FC103 Thẻ: danfoss

Mô tả
Đánh giá (0)

Biến tần Danfoss VLT® Refrigeration Drive FC103-55.0Kw – C/N: 134F8191

FC-103P55KT4E20H2XGXXXXSXXXXAXBXCXXXXDX
VLT® Refrigeration Drive FC 103
55 KW / 75 HP, 380 – 480 VAC,
IP20/ Chassis, RFI filter Class A2
No brake chopper, Graphical Loc. Cont Panel,
No Coated PCB, No Mains Option, No A Option.

CHARACTERISTIC – C/N: 134F8191	VALUE
PRODUCT GROUP	(FC-) VLT® Refrigeration Drive
SERIES	(103) VLT Refrigeration Drive
POWER RATING	(P55K) 55 KW / 75 HP
PHASE	(T) Three phase
MAINS VOLTAGE	(4) 380 – 480 VAC
ENCLOSURE	(E20) IP20 / Chassis
RFI FILTER	(H2) RFI filter Class A2
BRAKE – SAFE STOP	(X) No brake chopper
LCP (C/N:134F8191)	(G) Graphical Loc. Cont. Panel
COATING PCB	(C) Coated PCB
MAINS OPTION	(X) No Mains Option
ADAPTATION A	(X) Standard Cable Entries
ADAPTATION B	(X) No adaptation
SOFTWARE RELEASE	(SXXX) Latest release set. SW.
SOFTWARE LANGUAGE PACK	(X) Standard Language Pack
A OPTION	(AX) No A Option
B OPTION	(BX) No B Option
C0 OPTION MCO	(CX) No C0 option
C1 OPTION	(X) No C1 option
C OPTION SOFTWARE	(XX) No software option
D OPTION	(DX) No D option
FRAME SIZE (C/N:134F8191)	(C3) C3
TYPECODE PART 1	FC-103P55KT4E20H2XGX
TYPECODE PART 2	XXXSXXXXAXBXCXXXXDX
PRODUCT CATALOG	(GLBL) Global (Standard)
VENDOR	Factory DK
CALCULATED NET WEIGHT	34.500
CALCULATED GROSS WEIGHT	34.200
