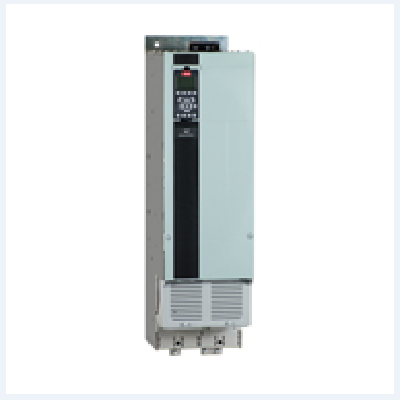

Biến tần Danfoss VLT Refrigeration Drive FC 103P400T4E00

Biến tần Danfoss VLT® RefrigerationDrive FC103-400Kw – C/N: 134N7560

Giá bán: 1₫

Biến tần Danfoss VLT Refrigeration Drive FC-103P400T4E00H2XGCXXXSXXXXA0BXCXXXXDX – 400 KW / 550 HP, Three phase 380 – 480 VAC, IP00 / Chassis, RFI filter Class A2, Graphical Loc. Cont. Panel, Coated PCB, Profibus DP MCA 101

Type code: FC-103P400T4E00H2XGCXXXSXXXXA0BXCXXXXDX
Mã sản phẩm: 134N7560
Công suất: 400 KW / 550 HP
Điện áp: 380-480V
Thương hiệu: Danfoss
Xuất xứ: Danfoss USA

Mã hàng: 134N7560 Danh mục: Biến Tần Danfoss VLT FC103 Từ khóa: danfoss

Mô tả
Đánh giá (0)

Biến tần Danfoss VLT® Refrigeration Drive FC103-400.0Kw – C/N: 134N7560

FC-103P400T4E00H2XGCXXXSXXXXA0BXCXXXXDX
VLT® Refrigeration Drive FC 103
400 KW / 550 HP, 380 – 480 VAC, IP00/ Chassis,
RFI filter Class A2, No brake chopper,
Coated PCB, Profibus DP MCA 101
Graphical Loc. Cont. Panel

CHARACTERISTIC – C/N: 134N7560	VALUE
PRODUCT GROUP	(FC-) VLT® Refrigeration Drive
SERIES	(103) VLT Refrigeration Drive
POWER RATING	(N400) 400 KW / 550HP
PHASE	(T) Three phase
MAINS VOLTAGE	(4) 380 – 480 VAC
ENCLOSURE	(E00) IP00/ Chassis
RFI FILTER	(H2) RFI filter Class A2
BRAKE – SAFE STOP	(X) No brake chopper
LCP (C/N:134N7560)	(G) Graphical Loc. Cont. Panel
COATING PCB	(C) Coated PCB
MAINS OPTION	(X) No Mains Option
ADAPTATION A	(X) Standard Cable Entries
ADAPTATION B	(X) No adaptation
SOFTWARE RELEASE	(SXXX) Latest release set. SW.
SOFTWARE LANGUAGE PACK	(X) Standard Language Pack
A OPTION	(A0) PROFIBUS DP MCA 101
B OPTION	(BX) No B Option
C0 OPTION MCO	(CX) No C0 option
C1 OPTION	(X) No C1 option
C OPTION SOFTWARE	(XX) No software option
D OPTION	(DX) No D option
FRAME SIZE (C/N:134N7560)	(E2) E2
TYPECODE PART 1	FC-103P400T4E00H2XGC
TYPECODE PART 2	XXXSXXXXA0BXCXXXXDX
PRODUCT CATALOG	(GLBL) Global (Standard)
VENDOR	(200010) Factory US
VENDOR REGION	(NER) Northern Europe
CALCULATED NET WEIGHT	236.300
CALCULATED GROSS WEIGHT	236.000
