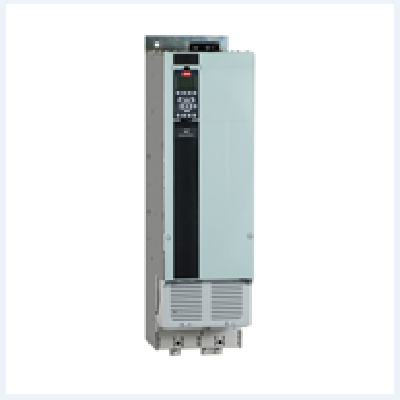

Biến tần Danfoss VLT Refrigeration Drive FC 103N315T4E 20H2XGCX

Biến tần Danfoss VLT® RefrigerationDrive FC103-315Kw – C/N: 134U1250

Biến tần Danfoss VLT Refrigeration Drive FC-103N315T4E20H2XGC7XXSXXXXAXBKCXXXXDX – 315 KW / 450 HP, Three phase 380 – 480 VAC, IP20 /Chassis, RFI filter Class A2, Graphical LCP, Coated PCB

Type code: FC-103N315T4E20H2XGC7XXSXXXXAXBKCXXXXDX
Mã sản phẩm: 134U1250
Công suất: 315 KW / 450 HP
Điện áp: 380-480V
Thương hiệu: Danfoss
Xuất xứ: Danfoss USA

Mã: 134U1250 Danh mục: Biến Tần Danfoss VLT FC103 Thẻ: danfoss

Mô tả
Đánh giá (0)

Biến tần Danfoss VLT® Refrigeration Drive FC103-315.0Kw – C/N: 134U1250

FC-103N315T4E20H2XGC7XXSXXXXAXBKCXXXXDX
VLT® Refrigeration Drive FC 103
315 KW / 450 HP, 380 – 480 VAC,
RFI filter Class A2, No brake chopper,
Coated PCB, IP20 /Chassis,
Graphical Loc. Cont. Panel

CHARACTERISTIC – C/N: 134U1250	VALUE
PRODUCT GROUP	(FC-) VLT® Refrigeration Drive
SERIES	(103) VLT Refrigeration Drive
POWER RATING	(N315) 315 KW / 450HP
PHASE	(T) Three phase
MAINS VOLTAGE	(4) 380 – 480 VAC
ENCLOSURE	(E20) IP20 /Chassis
RFI FILTER	(H2) RFI filter Class A2
BRAKE – SAFE STOP	(X) No brake chopper
LCP (C/N:134U1250)	(G) Graphical Loc. Cont. Panel
COATING PCB	(C) Coated PCB
MAINS OPTION	(X) No Mains Option
ADAPTATION A	(X) Standard Cable Entries
ADAPTATION B	(X) No adaptation
SOFTWARE RELEASE	(SXXX) Latest release set. SW.
SOFTWARE LANGUAGE PACK	(X) Standard Language Pack
A OPTION	(AX) No A Option
B OPTION	(BK) Purpose MCB 102
C0 OPTION MCO	(CX) No C0 option
C1 OPTION	(X) No C1 option
C OPTION SOFTWARE	(XX) No software option
D OPTION	(DX) No D option
FRAME SIZE (C/N:134U1250)	(E2) E2
TYPECODE PART 1	FC-103P315T4E00H2XGC
TYPECODE PART 2	XXXSXXXXA0BXCXXXXDX
PRODUCT CATALOG	(GLBL) Global (Standard)
VENDOR	(200010) Factory US
VENDOR REGION	(NER) Northern Europe
CALCULATED NET WEIGHT	234.300
CALCULATED GROSS WEIGHT	234.000
