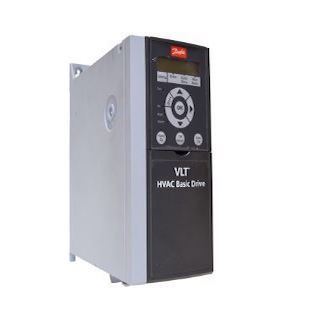

Biến tần Danfoss VLT HVAC Basic Drive FC 101P30K

Biến tần Danfoss VLT® HVAC Basic Drive FC101-30.0Kw – P/N: 131L9874

Biến tần Danfoss VLT HVAC Basic Drive FC-101P30KT4E20H2XXCXXXSXXXXAXBXCXXXXDX – 30KW / 40HP, 380 – 480V, IP20, RFI Class A2, Coated PCB, Numerical LCP (132B0200)

Type code: FC-101P30KT4E20H2XXCXXXSXXXXAXBXCXXXXDX
Mã sản phẩm: 131L9874
Công suất: 30KW / 40HP
Điện áp: 380 – 480V
Thương hiệu: Danfoss
Xuất xứ: Danfoss Denmark

Mã: 131L9874 Danh mục: Biến Tần Danfoss VLT FC101 Thẻ: biến tần Danfoss

Mô tả
Đánh giá (0)

Biến tần Danfoss VLT® HVAC Basic Drive FC101-30.0Kw – C/N: 131L9874

FC-101P30KT4E20H2XXCXXXSXXXXAXBXCXXXXDX
VLT® HVAC Drive FC- 101
(P30K) 30 KW / 40 HP, Three phase
380 – 480 VAC, (E20) IP20 / Chassis
RFI Filter
No brake chopper
No Loc. Cont. Panel
Coated PCB, No Mains Option
No A Option, No B Option
No C1 option, No D option
Frame: H6

CHARACTERISTIC – C/N: 131L9874	VALUE
PRODUCT GROUP	(FC-) VLT® HVAC Drive FC-
SERIES	101
POWER RATING	(P30K) 30 KW / 40 HP
PHASE	(T) Three phase
MAINS VOLTAGE	(4) 380 – 480 VAC
ENCLOSURE	(E20) IP20 / Chassis
RFI FILTER	(H2) RFI Class A2 (C3)
BRAKE – SAFE STOP	(X) No brake chopper
LCP (C/N:131L9874)	(X) No Loc. Cont. Panel
COATING PCB	(C) Coated PCB
MAINS OPTION	(X) No Mains Option
ADAPTATION A	(X) Standard Cable Entries
ADAPTATION B	(X) No adaptation
SOFTWARE RELEASE	(SXXX) Latest release std. SW.
SOFTWARE LANGUAGE PACK	(X) Standard Language Pack
A OPTION	((AX) No A Option
B OPTION	(BX) No B Option
C0 OPTION MCO	(CX) No C0 option
C1 OPTION	(X) No C1 option
C OPTION SOFTWARE	(XX) No software option
D OPTION	(DX) No D option
FRAME SIZE (C/N:131L9874)	H6
PRODUCT CATALOG	Global (Standard)
TYPECODE PART 1	FC-101P30KT4E20H2XXC
TYPECODE PART 2	XXXSXXXXAXBXCXXXXDX
VENDOR REGION	Southern Europe
VENDOR	Factory DK
CALCULATED NET WEIGHT	21.720
CALCULATED GROSS WEIGHT	21.600
